HOT ROLLED STEEL COILS

SIZE AND PROPERTIES

Product Details
Hot Rolled Steel Coils are steel that went through hot rolled process and rolled up with coil winding machine. They are quite distinguishable by its surface, which is still rough. They are the starting point of countless industries. Its application involves forming, bending and stamping.
One particular use of hot rolled steel coil involves forming structural steel products. However, it can also be used for other applications such and frameworks of industrial, and it can be cut into a sheet to use in industry works, construction works, and general mechanic works. It is often used to make gas cylinders, compressor tanks or cooling systems, pressure tanks, and as well as forming automotive undercarriage parts that require strengthness.

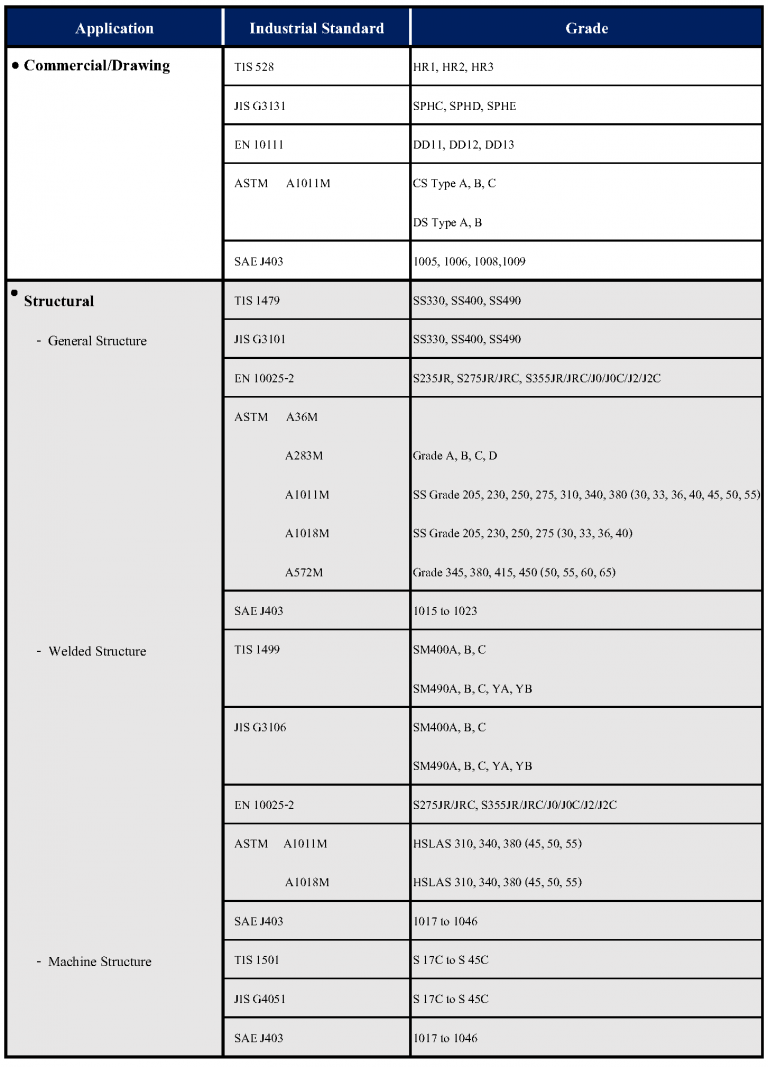

Product Size Chart

Application Industrial Standard Grade
Commercial/Drawing
TIS 528
HR1, HR2, HR3
JIS G3131
SPHC, SPHD, SPHE
EN 10111
DD11
ASTM A1011M
CS Type A, B, C

DS Type A, B
SAE J403
1005, 1006, 1008, 1009
Structural

• General Structure

• Welded Structure

• Machine Structure
TIS 1479
SS330, SS400, SS490
JIS G3101
SS330, SS400, SS490
EN 10025-2
S235JR, S275JR/JRC, S355JR/JRC/J0J0C/J2/J2C
ASTM A36M
A283M
Grade A, B, C, D
A1011M
SS Grade 205, 230, 250, 275, 310, 340, 380 (30, 33, 36, 40, 45, 50, 55)
A1018M
SS Grade 205, 230, 250, 275 (30, 33, 36, 40)
A572M
Grade 345, 380, 415, 450 (50, 55, 60, 65)
SAE J403
1015 to 1023
TIS 1499
SM400 A, B, C
SM490 A, B, C, YA, YB
JIS G3106
SM400 A, B, C
SM490 A, B, C, YA, YB
EN 10025-2
S275JR/JRC, S355JR/JRC/J0/J0C/J2/J2C
ASTM A1011M
HSLAS 310, 340, 380 (45, 50, 55)
A1018M
HSLAS 310, 340, 380 (45, 50, 55)
SAE J403
1017 to 1046
TIS 1501
S 17C to S 45C
JIS G4051
S 17C to S 45C
SAE J403
1017 to 1046
